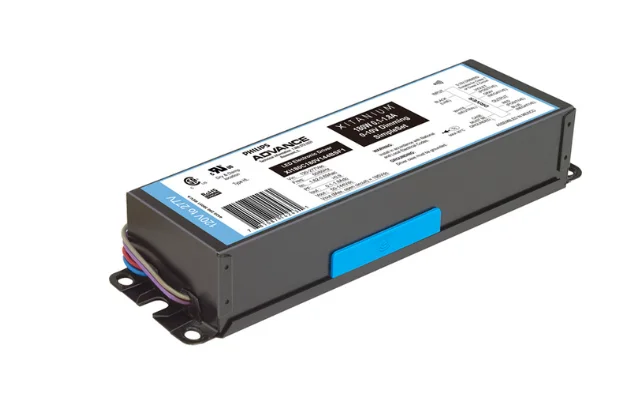

XI180C125V200BSF1 Advance Xitanium Programmable Constant Current LED Driver – 180W 1050mA Dimmable-Fast Shipping

Description

Advance Xitanium Constant Current LED Driver, 180W Max Power Output, Universal 120V-277V Input, Programmable Output Current 100mA to 1250mA (Factory Default 1050mA), Output Voltage 70-210V, Analog 0-10V Dimmable 10%-100%, IP67

Advance Xitanium 180W 1050mA Programmable LED Power Supply

180W 0.1-1.8A 0-10V Dimming with SimpleSet

Total Output Power: 180 Watts

Input Voltage: 120-277 VAC

Output Voltage Range: 70-210V

Output Current: Programmable 100mA to 1250mA (Factory Default 1050mA) via SimpleSet

IP67 UL Damp and Dry and HL

0-10V Analog 105% ~ 100% Dimming Range

Operating Temp Range: -40 to +55 °C

Class 1 and 2 Wiring

Spec Sheets

Advance Xitanium XI180C125V200BSF1 Specs
