Description
Advance Xitanium 100W LED Driver, 120-277V input, CV mode 24Vdc output, CC mode 4100mA Output Current, 0-10V Analog Dimming.
| XI100C410V024CNS1 Specs |

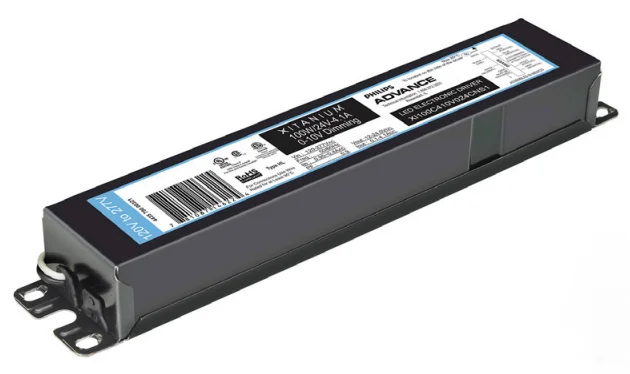

Advance Xitanium 100W Dimmable LED Driver
The Xitanium LED drivers with both constant voltage (CV) and constant current (CC) mode are compatible with respective loads and allow the user to utilize the same driver for CV and CC applications.
Total Max Output Power: 100 Watts
Total Output Voltage: 12-24VDC
Output Current: 4100 mA
Input Voltage: 120-277 VAC
Dimming:0-10V Analog 10%-100%
Input Line Current: 0.95A @ 120V, 0.4A @ 277V
Power Factor: 0.95
IP rating: IP66
Isolation: Class 2
UL Damp and Dry
Operating Temperature: -40°~ 90°C
