2848XB3H.06

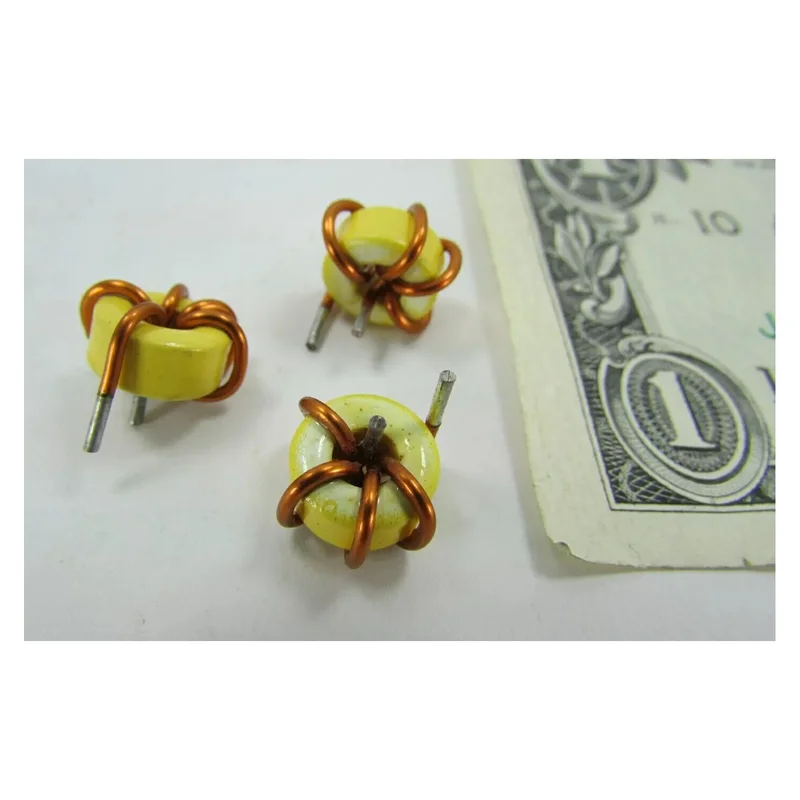

New Small Horizontal Mounted Inductors, or Toroids, or Chokes, or Coils with 5 Turns of 18 AWG Wire, for Through Hole Solder Mounting, Part Number Unknown. Each bid quantity is for a Lot of Ten (10) Inductors. You may bid / buy any number of lots, up to the total quantity available above.
These were purchased at an industrial liquidation earlier this year, and they were received brand new in unmarked plastic bags. Therefore, we don’t know much about them, other than what we can measure and observe.
According to the calipers:
Overall diameter: .510″ / 12.95 mm
Coil width: .284″ / 7.22 mm
Mounted height: .284″ / 7.22 mm
Ferrite core outside diameter: .387″ / 9.84 mm
Ferrite core inside diameter: .162″ / 4.12 mm
Ferrite core width: .199″ / 5.06 mm
Solder leads: .040″ diameter x .123″ long (1.02 mm diameter x 3.14 mm long)
Solder lead spacing: .200″ / 5.08 mm OC (on centers)
Wire gauge: 18AWG (.040″ / 1.02 mm)
Wire material: Copper
Ferrite material: Ferrous metal (attracts a magnet)
