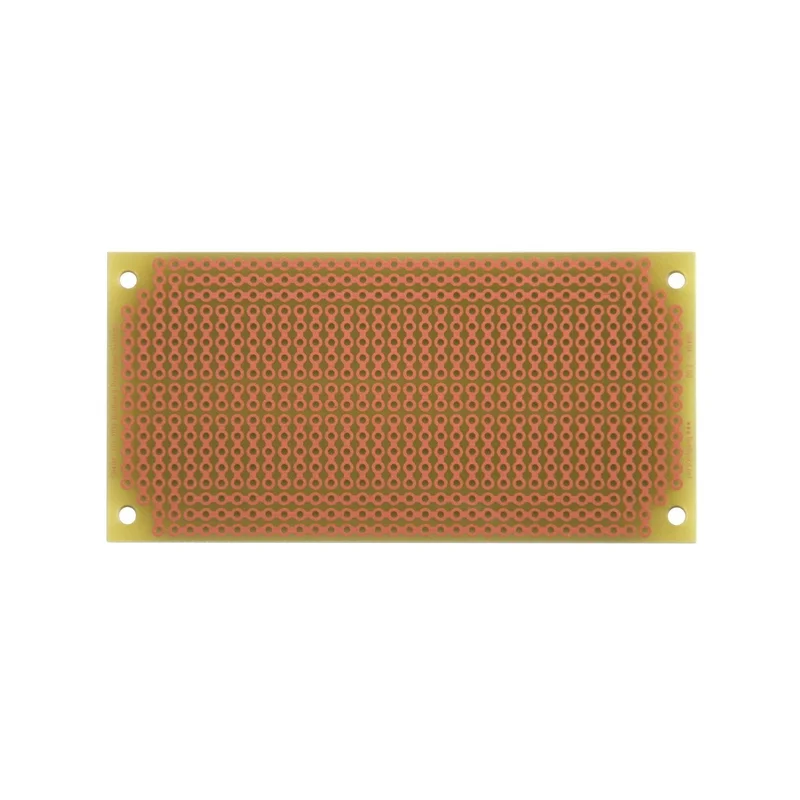

SB404 Solderable PC BreadBoard, 1 Sided PCB, Matches BB400 breadboards with Power Rails, 3.75 x 1.85in (95.3 x 47.0mm)-Fast Shipping

Description

Same pattern as a standard 400 connection point BB400 solderless plug-in breadboard.

Single-sided high-quality FR4 glass-epoxy circuit board. Top side silkscreen.

1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.

628 holes, 0.042″ holes are drilled on 0.1″ (2.54mm) centers. Four 0.125 mounting holes.

3.75 x 1.85in (95.3 x 47.0mm), 1/16″ thick (1.6mm)
