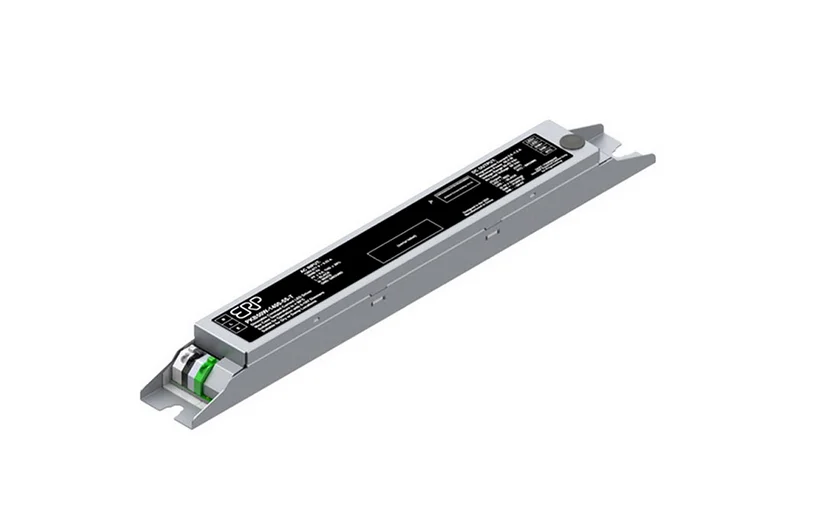

PLS-A20W-07-55-TZ (-TXZ) ERP Power Programmable Constant Current LED Driver – 20W 350mA Dimmable-Fast Shipping

Description

ERP Power Constant Current LED Driver, 20W Max Power Out, Universal 120-277V Input, Programmable Fixed Output Current of 100-700mA (factory default 350mA), Output Voltage 10-55Vdc, Analog 0-10V Dimmable, Optional AUX Output (-TXZ)

ERP Power PLS-A Series 20W 350mA Programmable Constant Current Dimmable LED Power Supply

Max Power 20W AC DC Converter

Current Output: Programmable fixed constant current of 100-700mA (factory default 350mA)

Input Voltage: 120-277VAC

Output Voltage: 10-55Vdc

Optional 12Vdc Auxiliary Port Outlet (-TXZ)

Programmable Analog 0-10V Dimming. Default 1% minimum with no dim-to-off. See Specification Sheet for other options.

IP20 Rectangular Aluminum case

UL8750 Class P, Class 2 power supply

Complies with ENERGY STAR, DLC (DesignLight Consortium) and CA Title 24 technical requirements

Spec Sheets

ERP Power PLS-A20W-07-55-TZ (-TXZ) Spec Sheet

ERP LED Drivers Catalog
