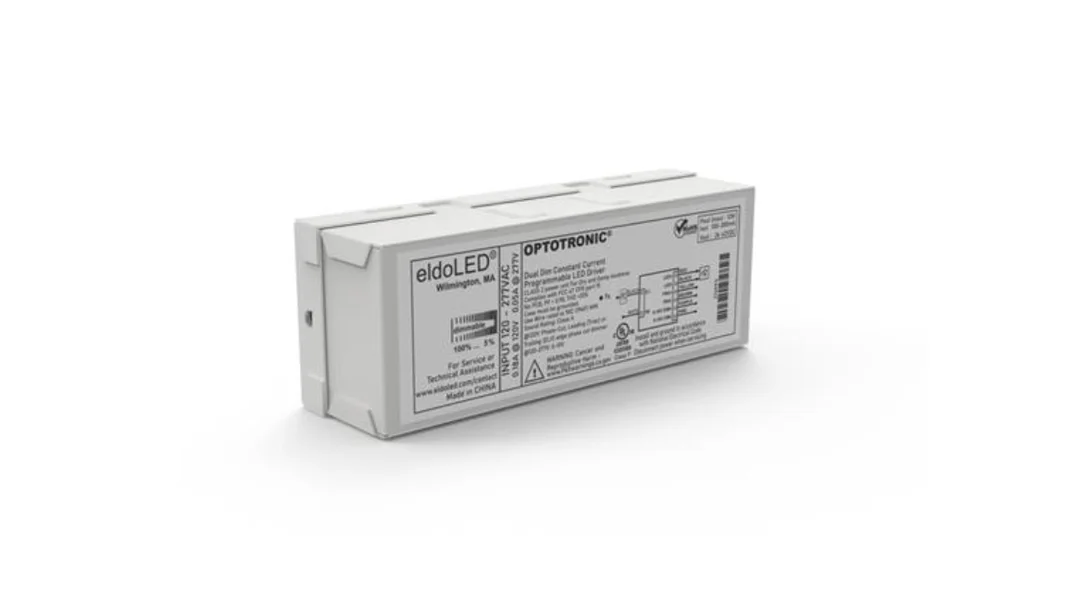

OT20W/UNV/0A5/DIM OPTOTRONIC Dual Dim Constant Current Programmable LED Driver – 20W 300mA Dimming-Fast Shipping

Description

OPTOTRONIC Programmable Constant Current DUAL DIM LED Driver, 20W Max Power Output, Universal 120-277V Input, Programmable Fixed Output Current of 250-500mA (factory setting 300mA), Output Voltage 26-42V, Dim to 1% or 5%, Feet or Stud Mount, Analog 0-10V / Phase-cut dimming

Optotronic 20W 300mA Constant Current DUAL-DIM LED Driver

20W Max AC-DC Converter

Universal Input Voltage: 120-277VAC

Output Voltage: 26-42VDC

Output Current: 250-500mA (factory default 300mA)

Dimensions: F-Style 3.98″(L) x 1.22″(W) x 1.0″(H); J-Style 3.56″(L) x 1.31″(W) x 1.0″(H)

Minimum Dim Level: 1% or 5%

DUAL Dimming: 0-10V or Phase Cut

UL Class 2 output for safe operation

Models

*276PF7 | 58022 | OT 20W UNV 0A5 DualDIM DIM-5 F-Housing J25 | OT20W/120-277/0A5/DIM-5/F

*276PFF | 58029 | OT 20W UNV 0A5 DualDIM DIM-5 J-Housing J25 | OT20W/120-277/0A5/DIM-5/J

*28437A | | OT 20W UNV 0A5 DualDIM DIM-1 F-Housing J25 | OT20W/120-277/0A5/DIM-1/F

*284378 | | OT 20W UNV 0A5 DualDIM DIM-1 J-Housing J25 | OT20W/120-277/0A5/DIM-1/J

Spec Sheets

OPTOTRONIC OT20W UNV 0A5 DUALDIM DIM-5 Spec Sheet

OPTOTRONIC OT20W UNV 0A5 DUALDIM DIM-1 Spec Sheet

eldoLED Small Form Factor Datasheet
