Description
LSP4-20-UNV LED Driver Surge Protection Device, Universal 120-277V Input, 20KA Max Capacity

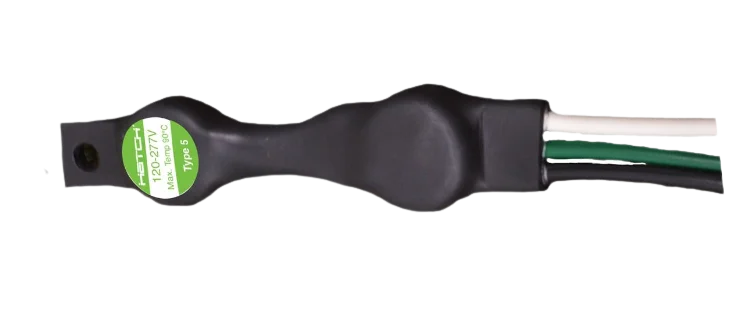

Hatch LSP4-20-UNV Surge Protection Device
The Hatch LSP4-20 surge protection device provides single phase protection for line/neutral, line/ground, and neutral/ground. The LSP4-20 offers protection for LED luminaires in a small and convenient flat form factor with thermal protection. The surge protector is a Type 5 SPD suitable for field or factory installation and is designed to be wired in parallel. The LSP4-20 also protects Electronic Fluorescent and HID ballasts as well as all other electronic products.
Maximum Discharge Current: 20kA
Wiring: 6, Black (L), White (N),Green (G) #14 AWG
Maximum Continuous Voltage: 320V
For use with 120-277V LED drivers, electronic fluorescent/HID ballasts
Spec Sheets
Hatch LSP4-20-UNV Specs
Hatch Family of Surge Protection Devices (SPDs)
