Description

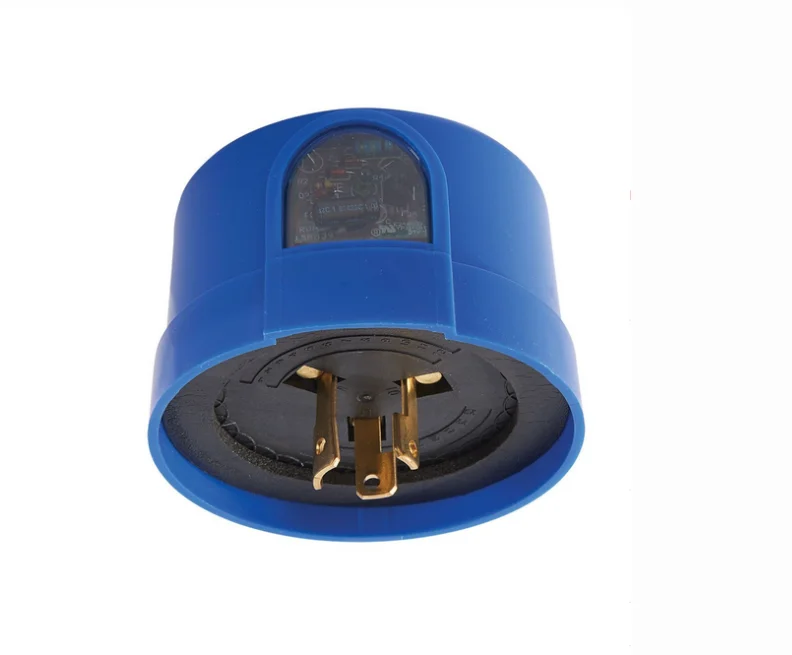

Intermatic Photocell Twist Lock Thermal Photocontrol, Universal 120-277V Input, 1000W Tungsten, 1800VA Ballast
Intermatic LC2100 Thermal Locking Photocell – 120-277V
This model complies with ANSI C136.10 NEMA receptacles commonly found on street light fixtures
Features
Mechanical bimetal switch with Silicon Diode photocell
Complies with ANSI C136.10 standard
Locking type plug for quick installation and changeovers
PhotoControl Specifications
Works on Metal Halide, High Pressure Sodium and Incandescent fixtures
Fits most fixtures with NEMA 3 prong receptacle light fixtures
Sensor time delay 30-90 seconds
1000W Tungsten, 1800VA Ballast
Turn on: 1.5 foot-candles
Turn off: 6 foot-candles
Rated at 3,650 expected lifetime operations
Polycarbonate with Acrylic Window
Rain tight
Spec Sheets
Intermatic LC2100 Spec Sheet
Intermatic LC2100 Installation Instructions
