Description
Keystone SmartCurrent Constant Current Driver, 25W Max Power Output, Universal 120-277V Input, Programmable Fixed Output Current 420-1250mA (factory default 1250mA), 8-55Vdc Output, Analog 0-10V Dimming, IP20 dry and damp locations, 12V Aux-port

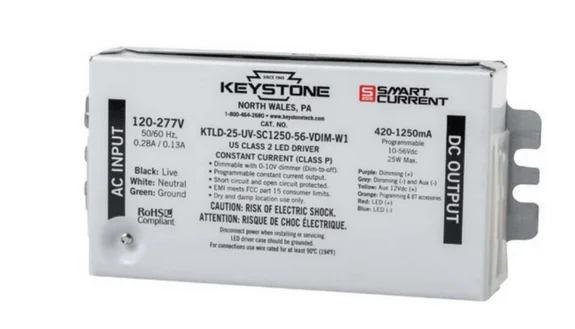

Keystone 25W 1250mA Constant Current LED Driver
Features
Output Power 25 Watt
Output Current: 420-1250mA (factory set 1250mA) in 10mA increments
Output Voltage 10-56Vdc
Minimum Dimming Level: 1%, 3%, 5%,7%, or 10% (factory set 1%)
Dimming Curve: Linear, Log, Inverse Log, or Square-law (factory set Linear)
Auxiliary Power: 12Vdc; 200mA Max
UL Class P, Meets FCC 47 CFR Part 15 (Class B) Consumer Limits
Short Circuit Overload and Open Load Protection
Type 1 Outdoor, Suitable for Dry and Damp Locations
Spec Sheets
Keystone KTLD-25-UV-SC1250-56-VDIM-W1 Spec Sheet
