Description

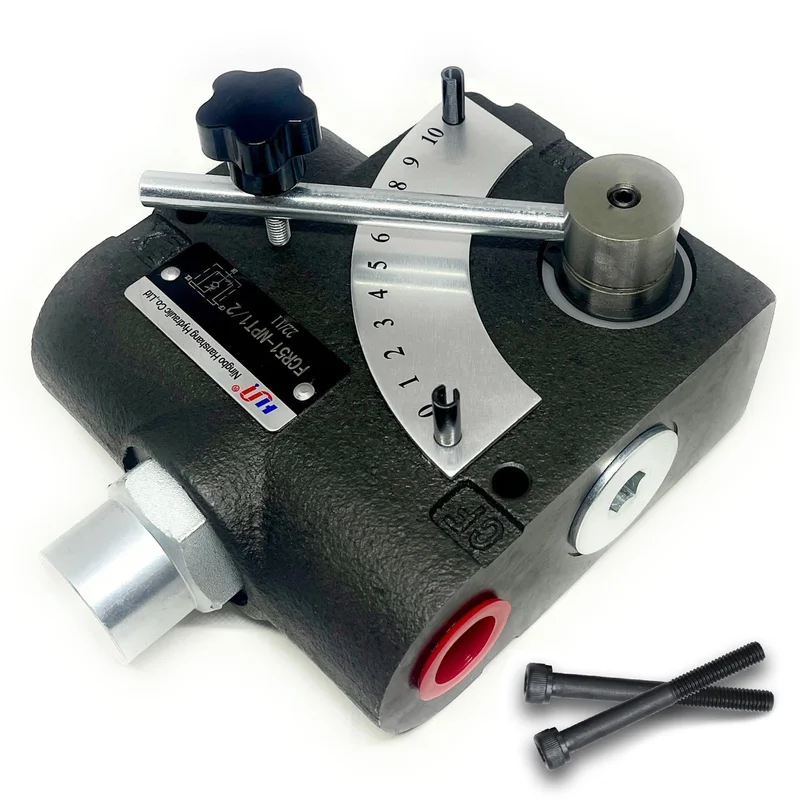

Side-ported adjustable flow control valve used to stop or start a hydraulic motor or cylinder
Top adjustable Ball Spring Relief Port, excess flow will be returned to tank or or used to power another function
Can vary speed over wide range, will maintain constant speed evenly regardless of load variation after setting
Replacement of FCR51-1/2 or PFC51-1/2, Weight: 5.9 LB, Durable and Safe Cast Iron Body,
Max Flow Rate: 30 GPM, adjustable Flow Rate: From 0 to 30 GPM
Port Size: 1/2 NPT, Max Working Pressure: 3002.28 PSI / 20.7 Mpa
Port IN ( Inlet Port )
Port CF ( Controlled Flow ): Flow from this port is pressure compensated and proportional. Depending on the position of the lever, the flow can be from closed to fully open
Port EX ( Excess Flow ): Outflow from this port if pressure compensated. If the lever is set to 0, all traffic will flow out of this port
Port Top Relief : Adjustable Ball Spring Relief Port
