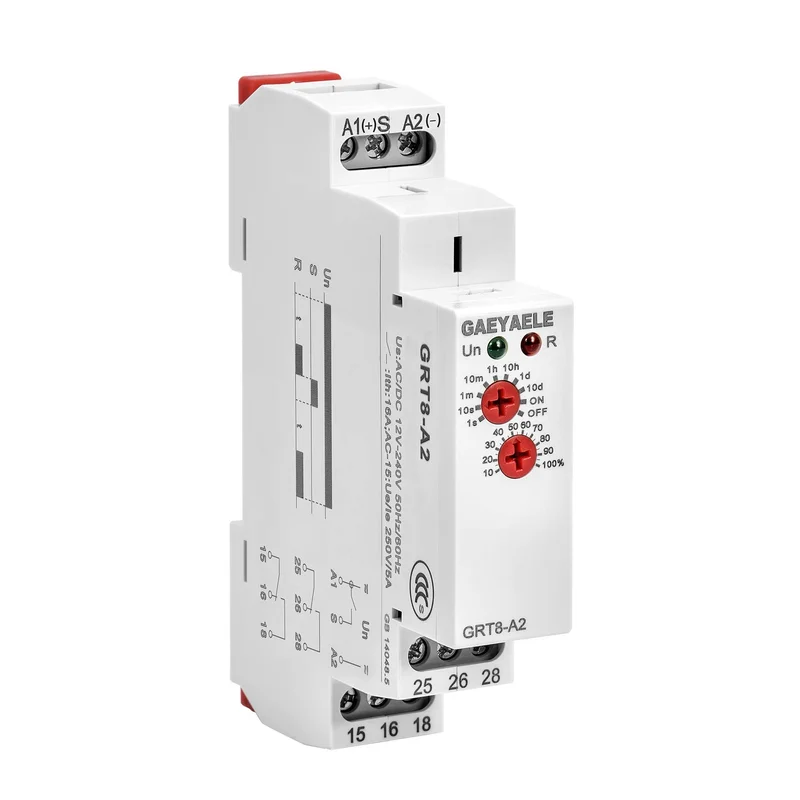

GAEYAELE Delay On Time Relay 16A 2SPDT Electronic Adjustable Single Function Timer Delay Relay Din Rail Modular(GRT8-A2,AC/DC12V-240V)-Fast Shipping

Description

Function Mode:It has two optional modes,A Delay ON or B Delay OFF.

High Cost Performance: Delay can be set directly through the panel knob, convenient and intuitive.

Time scale 0.1s-10days divided into 10ranges.(0.1-1s,1-10s,6-60s,1-10min,6-60min,1-10hr,0.1-1day,1-10day,only ON,only OFF).

Wide range voltage: AC/DC12-240V or contact: 1SPDT(1NO1NC) or 2SPDT(2NO2NC).Relay status is indicated by LED.

Ultra-small size,only 18mm width,35mm rail mounting.1-MODULE,DIN rail mounting.
