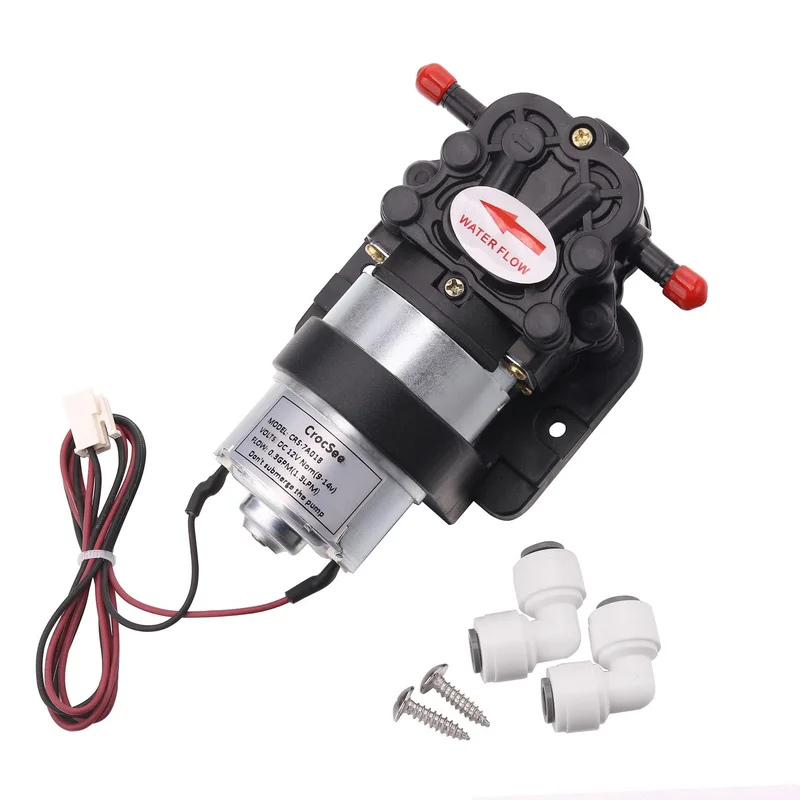

Description
Working Volts: DC 9 ~ 14v (12V is recommended), DO NOT USE AC POWER SOURCE! Normal Working Load current: 550mA, No-load current: 350mA. When the outlet is blocked, the current can be up to 1.1A.
Pump with self-priming function: Max. Vertical Suction Lift: 6.5ft(2m). Max. Flow: 0.3GPM(1.3LPM), Head(High Lift):100ft (30m). Built-in pressure relief valve. Pressure range: 30PSI(default)~40PSI.
Inlet and Outlet: 1/4 hose barb port. Compatible with 1/4 Tube Quick Connectors for 1/4 RO Water Tube. Or hose of 3/16 (5mm) inner dia. is recommended. Approx. Size: 124mm x 81mm x 60.5mm (4.88″ x 3.19″ x 2.38″)
The pump head is made of Food Grade materials. High Quality Long Life Replacement Pump for Ice Maker,Coffee Machine, Hot & Cold Water Dispenser, Refrigerator, fish tank, tea machine, etc.
Low noise, easy installation, stable performance. Appropriate for liquid circulation, transfer etc. DO NOT Pump Flammable/Corrosive/High Viscous/Muddy Liquids! There is no built-in pressure switch.
