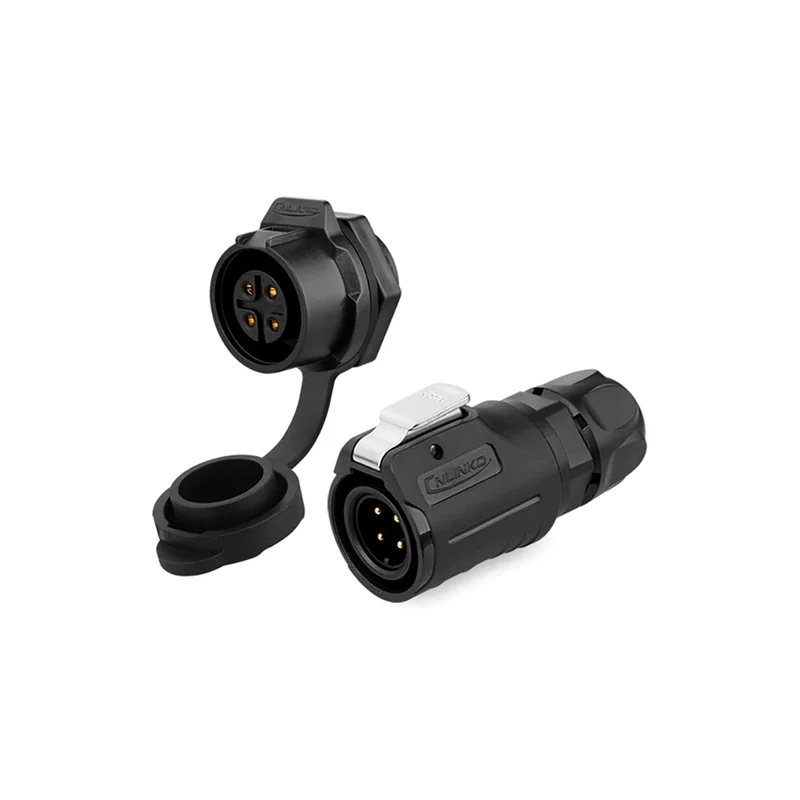

CNLINKO IP68 Circular Panel M16 Plastic 4 Pin Plug and Socket Electrial Waterproof Auto Wire Harness Solder with Cover for Power Equipment DC/AC Welding Connector (4 Pin)-Fast Shipping

Description

LP-16-C04PE-02-001 + LP-16-J04SX-02-101 ; Male Plug + Female Socket ; Connecting Mode: Plug/Unplug ; Protection Level: IP67(Mated) ;

Standard Cable Specification: 1.0-1.5mm²/18-16AWG ; Cable Diameter Range: 3.0~8.5mm ; Contact Diameter × Number: 1.5×4 ; Durability: 500 Mating/Unmating Cycle ; Temperature Rating: -40°C ~ 80°C ; Assembly Style:Solder ;

Specifications Rated Current: 10A ; Operating Voltage (): 400V ; Withstanding Voltage (AC.V),1 Minute: 1500V ; Contact Resistance:

Material Shell & Insulated Parts: High Performance Engineer Plastic ; Hard Metal: Zinc Alloy(Pearl Hard Chromium) ; Contact: Copper Alloy(Gold Plated) ; Sealing: Silica Gel ;

Application Medical Equipment ; Server ; Communications Equipment ; Solar Energy Equipment ; The Smart Grid ; Electric Power Equipment ; Stage Equipment ; Ship Equipment ; Vehicle Equipment ; Heavy Machin ;
