Description

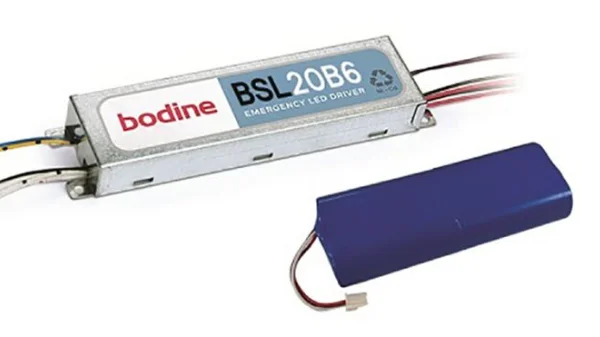

BODINE BSL20B6 COLD (BSL20B6UEG55SBI1) 90-minute LED Emergency Driver, up to 20W Output Power, Input 120V-277V, Output 20-54VDC, Self-Testing, California CEC Title 20 Compliant, Separate Battery Pack
Bodine BSL20B6 COLD Emergency LED Driver: 90-minute Illumination
Features
Intelligent output initially provides rated power regardless of the LED array voltage
Smart Charger Technology with low energy consumption helps meet Title 24 building requirements
Meets CEC Title 20 (California Energy Commission) efficiency standards
Test switch is IP65 rated for protection to dust and water ingress
Universal input (120-277 VAC)
Low Voltage Class 2 or High Voltage Output
Compatible with a variety of LED arrays and AC drivers
UL Listed for field or factory installation
Includes Test Switch/Charging Indicator Light – IP65 Rated
Battery integral (B2) or separate (B6) version
Temperature Rating Ambient: -20°C to +55°C (-4°F to 131°F)
Lumen Output
These products are suitable for installation with a wide variety of LED light engines.
To estimate the egress lighting illumination levels achieved by a system incorporating these products, follow the steps outlined in the Specification Sheet Tab
LUMENS IN THE EMERGENCY MODE = LUMENS PER WATT OF FIXURE x OUTPUT POWER OF EMERGENCY LED DRIVER
Spec Sheets
Bodine BSL20B6-COLD Specs
Bodine BSL20B6-COLD Installation Instructions
