Description

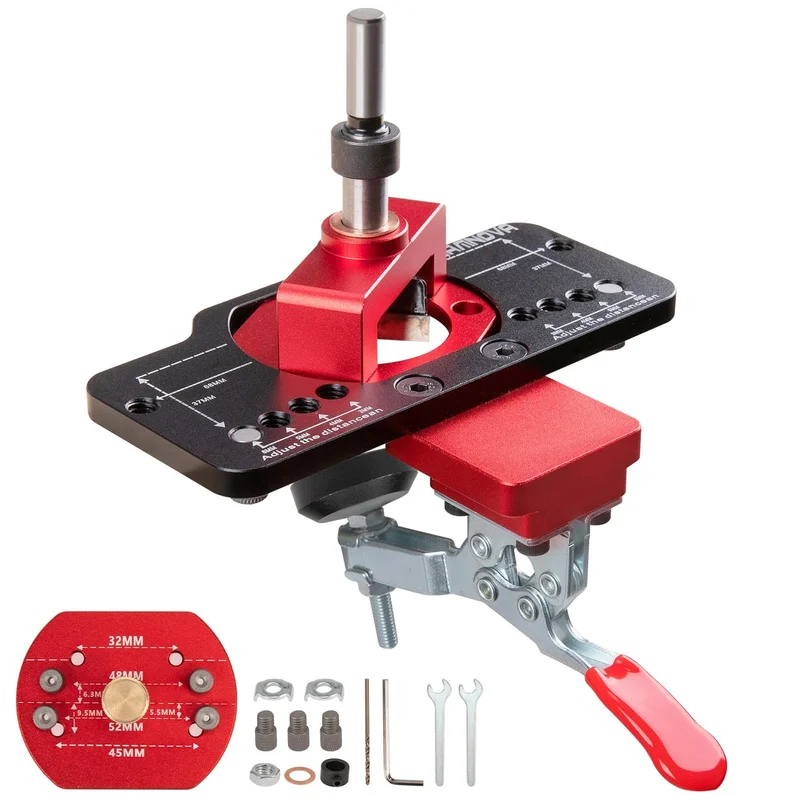

Drill Guide LocatorHinge boring jig comes with a hinge drilling guide, compatible with most hinges in the market including 32mm, 45mm, 48mm, and 52mm sizes, covering both American and European
AdjustableBEAMNOVA cabinet hinge jig has multiple position limits,hinge hole edge distance adjustment3/4/5/6mm,and this cabinet door hinge jig does allow for more adjustments on how deep you need the hinge cup,10-15mm
Aluminum Alloy MaterialBEAMNOVA door hinge jig made of high-quality aluminum alloy material,rust-proof,sturdy,and can be used continuously for many years. Precision manufacturing, accurate positioning, and sharp drill bits make it a good helper for installing various cabinet door hinge fixtures
Hole Center To The Edge 68mm:hinge drilling jig has an end stop pointer set screw, which is set at a distance of 68mm from the center of the hinge hole you are drilling.
How to use 1. Install a 35mm hole saw and lock the limit ring. 2. Adjust the black fixing tool on the light fixture (the tool can adjust the fixing plate size to 15-25mm). 3. Install the locator and drill in the box. 4. Tighten the drill handle and press the hole evenly to a depth of 10-15 suitable screw holes on both sides according to the size of the hinge.
