Description
AC Electronic LED Emergency Driver with Power Activate, 10W Constant Output Power, Universal 120-277V Input, 90 minutes, 15-55VDC Voltage Output, 180-670mA Current Output, Feet-Mount Leads

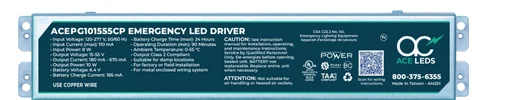

AC Electronics 10W Power-Activate Emergency LED Driver
ACEPG101555CP replaces ACE-G10i-1555CP and includes the Power Activate feature, which eliminates the external battery connector.
Features and Performance
UL and cUL (UL924)Emergency LED Driver
At least 90 minute operation in emergency mode
Universal input voltage: 120-277VAC
Can be used in switched or unswitched fixture applications
Class 2
Includes a miniature illuminated test switch status indicator: Enables mounting in small spaces
Maximum Case Temperature 66 C
CEC Title 20 compliant
Surge Protection – 3kV
Open/Short/Over-Voltage/Over Temperature protection
Includes leads – No conduit
IP30 Rated Damp/Dry
Spec Sheets
ACE LEDS ACEPG101555CP Spec Sheet
ACE LEDS ACEPG101555CP Installation
