Description
AC Electronic LED Constant Power Emergency Backup LED Driver, 10W Max Power Output, 120-277VAC Input, 90 minutes with 15-55VDC Output, Current Range 180mA to 660mA (190mA in Emergency Mode), IP30 rated

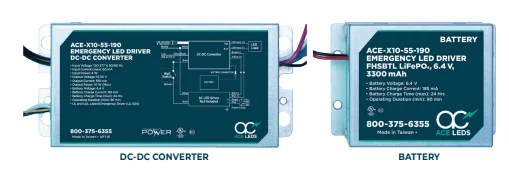

ACE LEDS 10W Emergency Back-up LED Driver
This AC Electronics (ACE LEDS) UL Listed Emergency Backup Driver allows a single fixture to be used for both regular and emergency (loss of power) operations. If power fails, this emergency driver switches to Emergency Mode. During Emergency operation, this driver will drive any LED module that is designed to accept a constant current input of 190mA and has an input voltage in the range of 15-55 VDC. It can be used in conjunction with switched and unswitched fixture applications.
Features and Performance
At least 90 minute operation in emergency mode
Universal 120-277VAC Input
UL & cUL Class 2 output
Operating Temperature Range 0 C Through 55 C
Maximum Case Temperature 66 C
5-year USA Backed warranty
Surge Protection – 3kV
Title 24 compatible, CEC Title 20 Compliant
UL and cUL Listed as an Emergency LED Driver
Spec Sheets
ACE-X10-55-190 Specs
