Description
AC Electronic LED Emergency Backup Driver, 10W Max Output Power, 120-277VAC, 90 minutes with 15-55VDC 190mA output, leads
DISCONTINUED BY MANUFACTURER, NOW SHIPPING CANDIDATE REPLACEMENT – Please review replacement and order here: Candidate Replacement

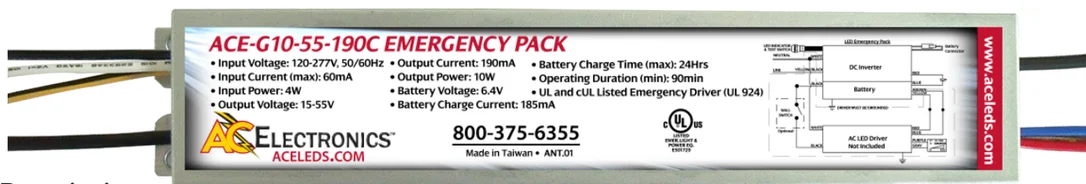

AC Electronics 10W Emergency Back-up LED Inverter
This AC Electronics UL Listed Emergency Backup Driver allows a single fixture to be used for both regular and emergency (loss of power) operations. If power fails, this emergency driver switches to Emergency Mode. It will then operate the LED modules for 90 minutes at an output voltage in the range of 15-55 V. It can be used in conjunction with switched and unswitched fixture applications.
Features and Performance
At least 90 minute operation in emergency mode
Wide range input voltage – range – 120-277VAC
Class P listed
Test switch and AC Power-On LED indicator for self-dignostic test
Operating Temperature Range 0 C Through 55 C
Maximum Case Temperature 66 C
Up to 71% Efficiency
5-year USA Backed warranty
Surge Protection – 3kV
Open/Short/Over-Voltage/Over Temperature protection
includes leads – NO conduit
Note: AC LED driver not included
