Description
AC Electronics Constant Current LED Driver, 30W Max Power, Universal 120-277V Input, Programmable Output Current 350-1250mA, Analog 0-10V Dimming 1%-100%

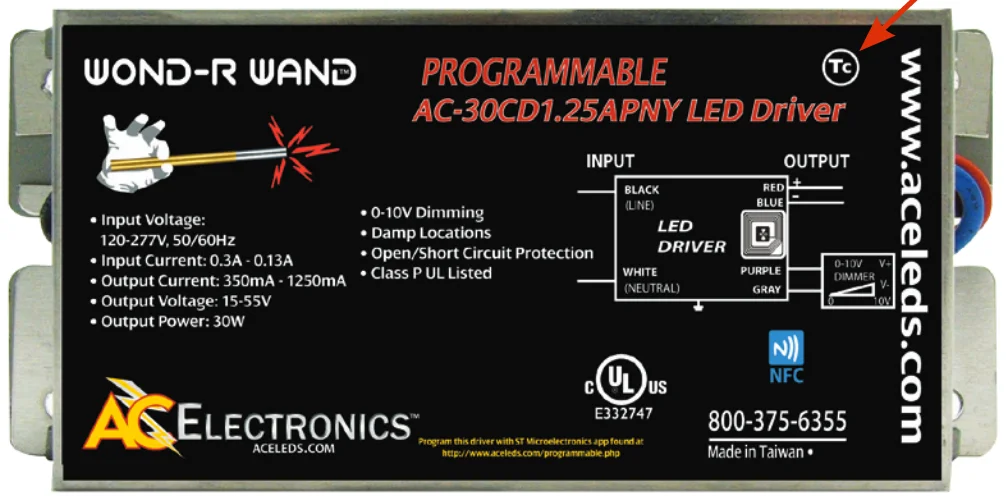

AC Electronics 30W Programmable Constant Current LED Driver
Adjustable Current and Dimming
Max Output Power: 30W
Output Current: 350-1250mA
Output Voltage: 15-55V
Input Voltage: 120-277V
0-10V Dimming
Dimmable Range: 1-100%
Max Case Temp: 194°F/90°C
Min Starting Temp: -40°F/-40°C
UL and cUL Recognized
Class A Sound Rating
RoHS Compliant
IP64
Surge Protection
Spec Sheets
ACE LEDS AC-30CD1.25APNY Spec Sheet
