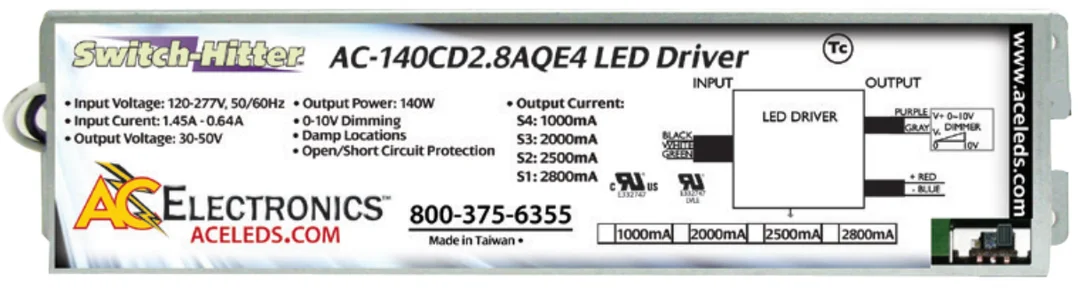

AC-140CD2.8AQE4 ACE LEDS Switch-Hitter LED Driver – 140W/2800mA 125W/2500mA 100W/2000mA 50W/1000mA-Fast Shipping

Description

AC Electronics Constant Current LED Driver, Universal 120-277V Input, Field Select 140W/2800mA 125W/2500mA 100W/2000mA 50W/1000mA, 30-50Vdc Output, Analog 0-10V Dimming

AC Electronics Switch-Hitter Constant Current LED Driver

Multi-Switch Power/Current

Switch 1: 140W/2800mA

Switch 2: 125W/2500mA

Switch 3: 100W/2000mA

Switch 4: 50W/1000mA

Output Voltage: 25-42V

0-10V Dimming

Dimmable Range: 10-100%

Input Voltage: 120-277V

Max Case Temp: 194°F/90°C

Min Starting Temp: -40°F/-40°C

UL and cUL Recognized

Class A Sound Rating

RoHS Compliant

IP64

Surge Protection

Spec Sheets

ACE LEDS AC-140CD2.8AQE4 Spec Sheet
